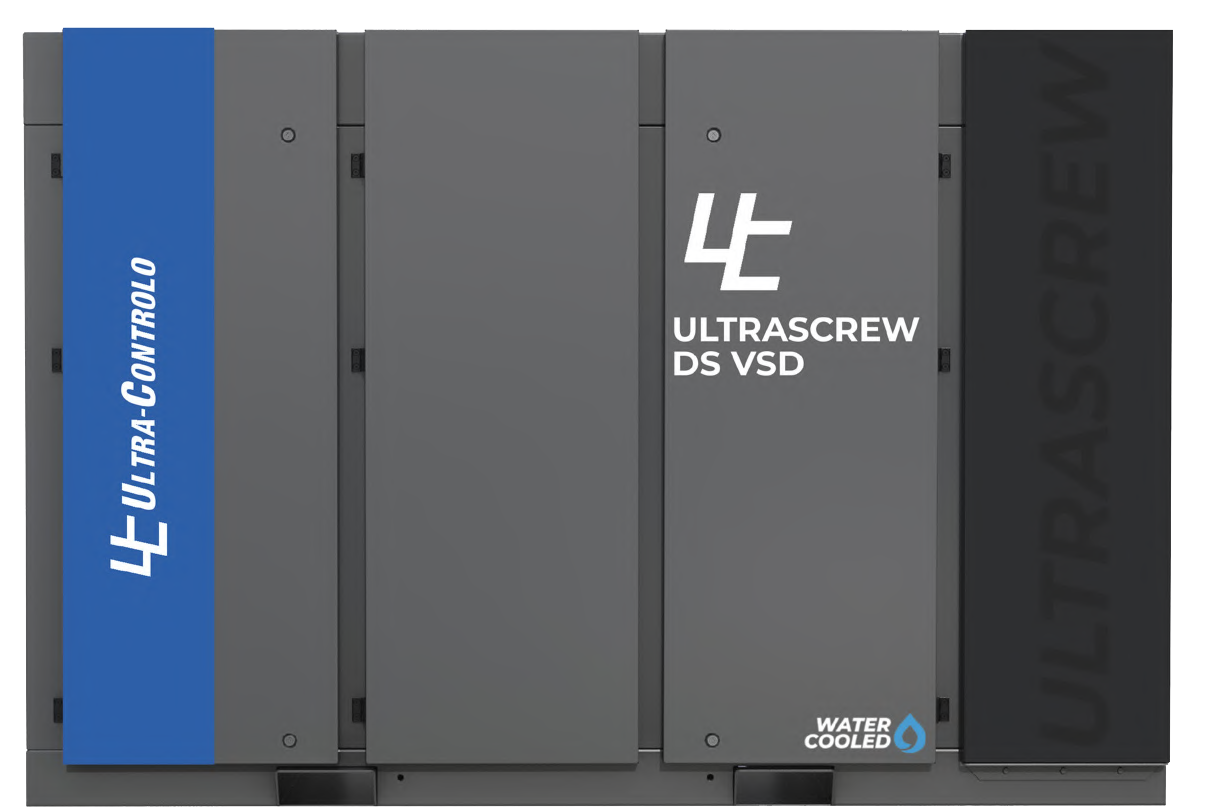

ULTRASCREW DS VSD

Oil Injected, Two-Stage, Direct Coupled, Fixed/Variable Speed Rotary Screw Air Compressors

ULTRASCREW DS VSD

ULTRASCREW DS VSD

Next-generation compact compressors that maximize energy savings and minimize total cost of ownership.

The ULTRASCREW DS VSD is engineered for industrial operations where compressed air demand fluctuates. With two-stage screw compression, direct coupling and IE5 IPM variable-speed motors, it automatically matches air production to real-time demand, delivering energy savings of up to 65% compared to traditional fixed-speed compressors. Available from 22 kW to 90 kW in both fixed-speed (DS) and variable-speed (DS VSD) configurations, with optional integrated dryer and heat recovery for full-facility efficiency.

Inquiry now

ULTRASCREW DS VSD

Oil Injected, Two-Stage, Direct Coupled, Fixed/Variable Speed Rotary Screw Air Compressors

ULTRASCREW DS VSD

ULTRASCREW DS VSD

Next-generation compact compressors that maximize energy savings and minimize total cost of ownership.

The ULTRASCREW DS VSD is engineered for industrial operations where compressed air demand fluctuates. With two-stage screw compression, direct coupling and IE5 IPM variable-speed motors, it automatically matches air production to real-time demand, delivering energy savings of up to 65% compared to traditional fixed-speed compressors. Available from 22 kW to 90 kW in both fixed-speed (DS) and variable-speed (DS VSD) configurations, with optional integrated dryer and heat recovery for full-facility efficiency.

The ULTRASCREW DS VSD is engineered for industrial operations where compressed air demand fluctuates. With two-stage screw compression, direct coupling and IE5 IPM variable-speed motors, it automatically matches air production to real-time demand, delivering energy savings of up to 65% compared to traditional fixed-speed compressors. Available from 22 kW to 90 kW in both fixed-speed (DS) and variable-speed (DS VSD) configurations, with optional integrated dryer and heat recovery for full-facility efficiency.
Next-generation compact compressors that maximize energy savings and minimize total cost of ownership.
Oil Injected, Two-Stage, Direct Coupled, Fixed/Variable Speed Rotary Screw Air Compressors

ULTRASCREW DS VSD

The ULTRASCREW DS VSD is engineered for industrial operations where compressed air demand fluctuates. With two-stage screw compression, direct coupling and IE5 IPM variable-speed motors, it automatically matches air production to real-time demand, delivering energy savings of up to 65% compared to traditional fixed-speed compressors. Available from 22 kW to 90 kW in both fixed-speed (DS) and variable-speed (DS VSD) configurations, with optional integrated dryer and heat recovery for full-facility efficiency.
Contact Us
ULTRASCREW DS VSD

Up to 65% Energy Savings

Ultra Premium IE5-class IPM motors on variable-speed models and IE4-class motors on fixed-speed models, combined with two-stage compression, deliver up to 10% higher energy efficiency and up to 10% higher flow rate than single-stage alternatives.
ULTRASCREW DS VSD

Two-Stage Direct-Coupled Screw Block

Near-isothermal two-stage compression with direct power transmission eliminates transmission losses. Low compression ratios reduce axial and compression forces between rotors, ensuring long service life, low vibration and low noise levels (71–75 dB(A)).
ULTRASCREW DS VSD

Intelligent VSD Control & Dual PID

7” LED display with integrated driver and controller, ModbusTCP communication, and Dual PID feature running simultaneous pressure and temperature control. Synchronized group operation of up to 4 compressors (VSD) or 5 compressors (fixed speed) without an external master controller.
ULTRASCREW DS VSD

Heat Recovery Ready

Up to 80% of the compressor’s total energy consumption can be recovered as usable heat through an optional oil/water exchanger — producing hot water for facility use or heated air for seasonal space heating, delivering further savings on natural gas and heating costs.

Technical Specifications

2026
ULTRASCREW DS VSD
System Specs
Highest standards of certification

Certified according to ISO 13485 and ISO 9001

UltraCare

Support available 7 days a week, 24 hours a day, to take care of any questions or concerns you may have.

Smooth ordering process

Our customer support team is ready to help and provide the best solution for your needs.

Fast delivery

We offer fast and safe shipping. We ship worldwide daily.
