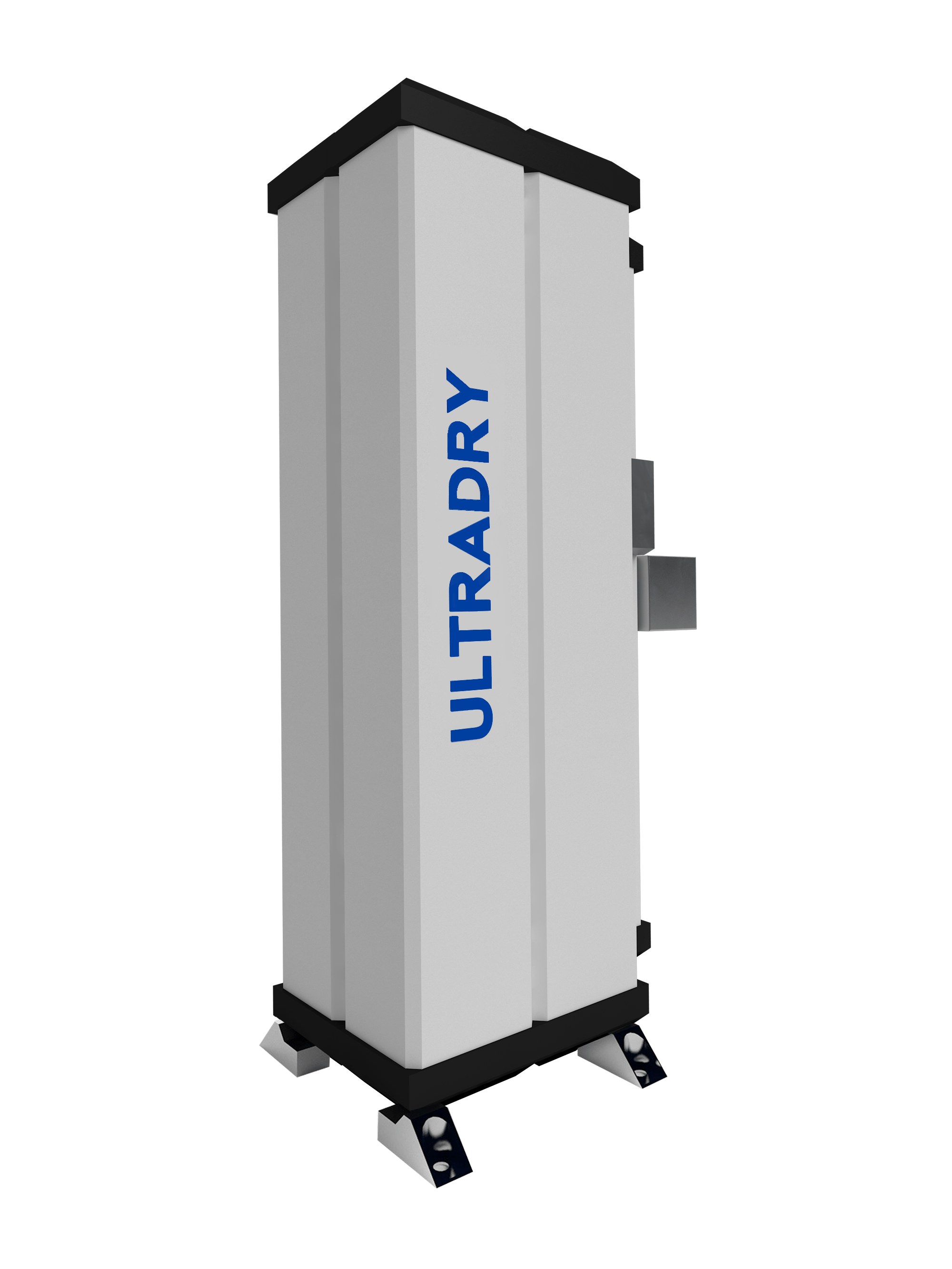

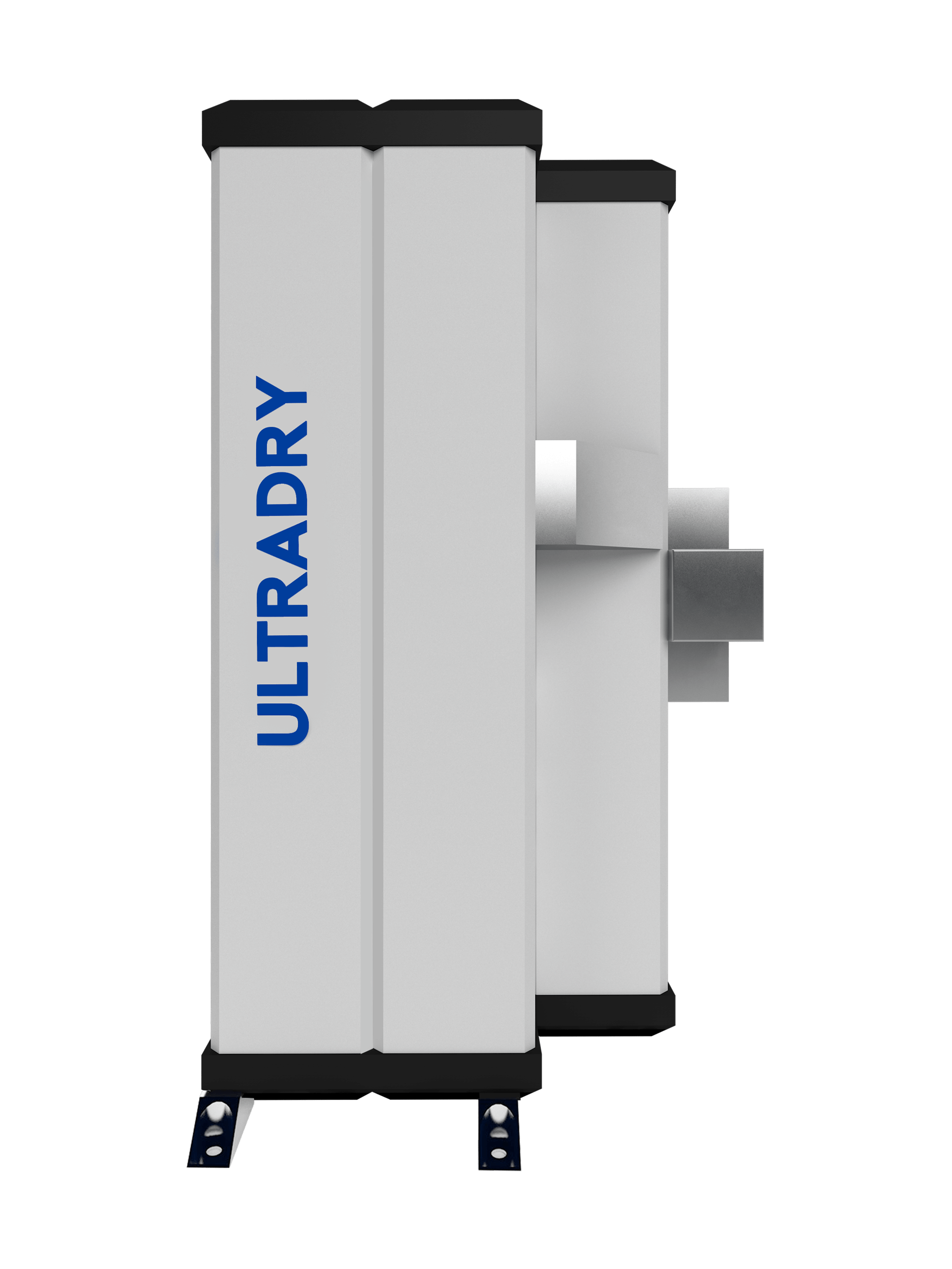

ULTRADRY
Adsorption Air Dryer
ULTRADRY is a twin tower adsorption dryer with heatless regeneration. It delivers ultra dry air with a stable dew point through demand swings, and it is the dryer of ULTRAAR ME and ULTRAAR SC medical air plants, with two units per plant.
Twin towers with heatless regeneration and continuous adsorption control. Regeneration silencers reduce noise.
Dew point from -40 °C to -70 °C, stable through demand swings.
In ULTRAAR ME and ULTRAAR SC each plant has two dryers, and each unit is sized for 100% of system flow.
Low pressure drop design and corrosion resistant construction for longevity.
| Model | 10 bar m³/h | 10 bar L/min | 12 bar m³/h | 12 bar L/min |
|---|---|---|---|---|
| ULTRADRY 1 | 24 | 400 | - | - |
| ULTRADRY 2 | 39 | 650 | 44 | 740 |
| ULTRADRY 3 | 57 | 950 | - | - |
| ULTRADRY 4 | 89 | 1,490 | 99 | 1,650 |
| ULTRADRY 5 | 138 | 2,300 | 152 | 2,540 |
| ULTRADRY 6 | 186 | 3,100 | 206 | 3,440 |
| ULTRADRY 7 | 223 | 3,720 | 247 | 4,120 |
| ULTRADRY 8 | 290 | 4,840 | 321 | 5,350 |
| ULTRADRY 9 | 372 | 6,200 | - | - |
| ULTRADRY 10 | 461 | 7,690 | 510 | 8,500 |
| ULTRADRY 11 | 558 | 9,300 | 617 | 10,290 |
| ULTRADRY 12 | 670 | 11,170 | - | - |
| ULTRADRY 13 | 952 | 15,870 | - | - |
As listed in the ULTRAAR ME datasheet. A dash means the datasheet gives no value at that pressure.
It has twin towers with heatless regeneration, and regeneration silencers reduce noise.
ULTRADRY is an adsorption dryer with a dew point from -40 °C to -70 °C. ULTRASEC is a refrigeration dryer with a dew point of +2 °C at 7 barg.
ULTRAAR ME and ULTRAAR SC medical air plants, with two dryers per plant.
