ULTRAOC

Self-Contained Oxygen Production Unit

ULTRAOC

ULTRAOC

Self-contained oxygen unit for individual use, 93% ± 3% purity, in two sizes up to 10 L/min.

ULTRAOC supplies oxygen for individual use without a traditional oxygen cylinder or bottle. It filters the surrounding air, compresses it and removes nitrogen through a molecular sieve, delivering a continuous flow at 93% ± 3% purity. Oxygen therapy should be prescribed and monitored by a doctor.

Enquire now

ULTRAOC

Self-Contained Oxygen Production Unit

ULTRAOC

ULTRAOC

Self-contained oxygen unit for individual use, 93% ± 3% purity, in two sizes up to 10 L/min.

ULTRAOC supplies oxygen for individual use without a traditional oxygen cylinder or bottle. It filters the surrounding air, compresses it and removes nitrogen through a molecular sieve, delivering a continuous flow at 93% ± 3% purity. Oxygen therapy should be prescribed and monitored by a doctor.

93% ± 3%oxygen purity
0 to 10L/min on ULTRAOC 8, 0 to 5 on ULTRAOC 3
> 18,000 hlifespan

Get the highlights.

ULTRAOC supplies oxygen for individual use without a traditional oxygen cylinder or bottle. It filters the surrounding air, compresses it and removes nitrogen through a molecular sieve, delivering a continuous flow at 93% ± 3% purity. Oxygen therapy should be prescribed and monitored by a doctor.

No cylinder needed

Oxygen from the surrounding air, with no traditional cylinder or bottle and full independence from a source of supply.

93% ± 3% purity

A high efficiency pre-filter and a HEPA filter protect the molecular sieve. Light indicators show the oxygen concentration.

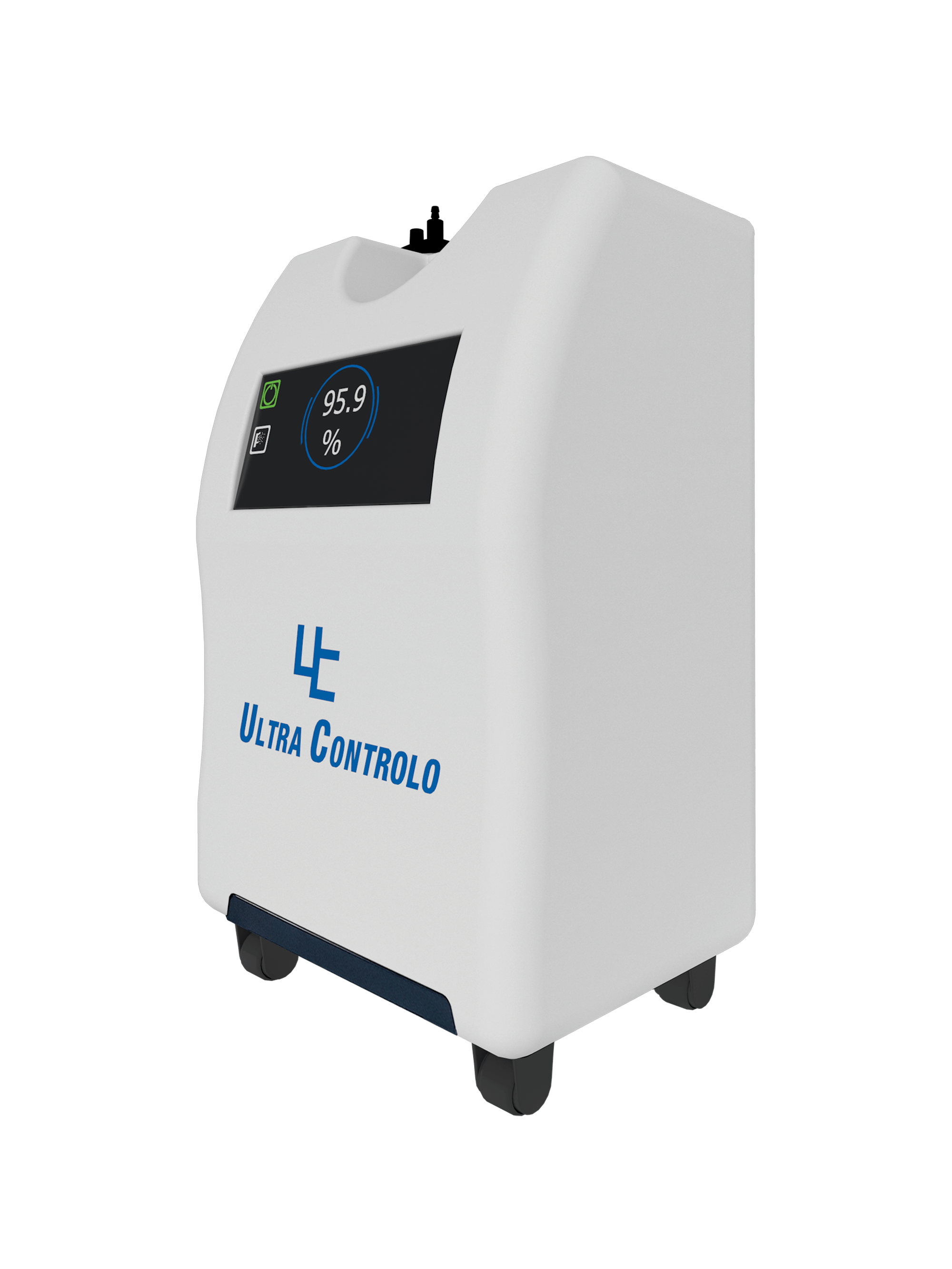

Portable design

Small size and wheels on the bottom for easy transport.

Long lifespan

More than 18,000 hours, for 24/7 use.

Technical specifications.

Models
ULTRAOC 3 and ULTRAOC 8
Oxygen purity
93% ± 3%
Flow rate
0 to 5 L/min on ULTRAOC 3, 0 to 10 L/min on ULTRAOC 8. Manual adjustment on a graduated flowmeter in L/min
Output pressure
20 to 60 kPa on ULTRAOC 3, 40 to 80 kPa on ULTRAOC 8
Power consumption
320 W on ULTRAOC 3, 610 W on ULTRAOC 8
Voltage, ULTRAOC 8
220 V ± 22 V, 50 Hz ± 1 Hz / 110 V ± 15 V, 60 Hz ± 1 Hz
Interface

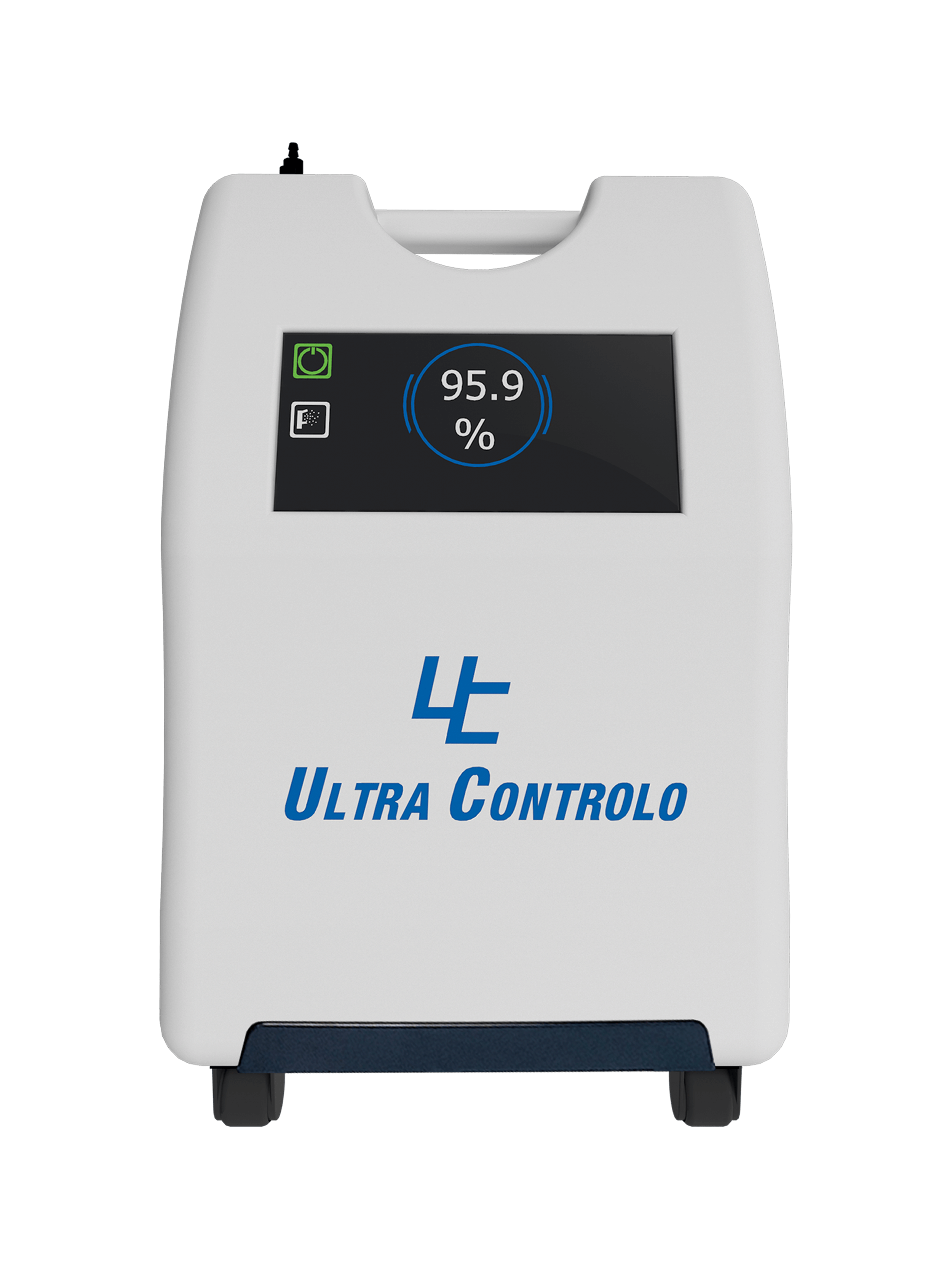

LCD screen with buttons and voice information
Filters
High efficiency pre-filter, washable, and HEPA filter
Oxygen concentration lights
Green at ≥ 82%, yellow at 65% to 82%, red at < 65%
Other alarms
Occlusion indicator (no flow), electric power failure
Nebuliser
Nebulisation cup ≥ 0.15 ml/min
Timer
Shows total working time on the screen
Standard accessories

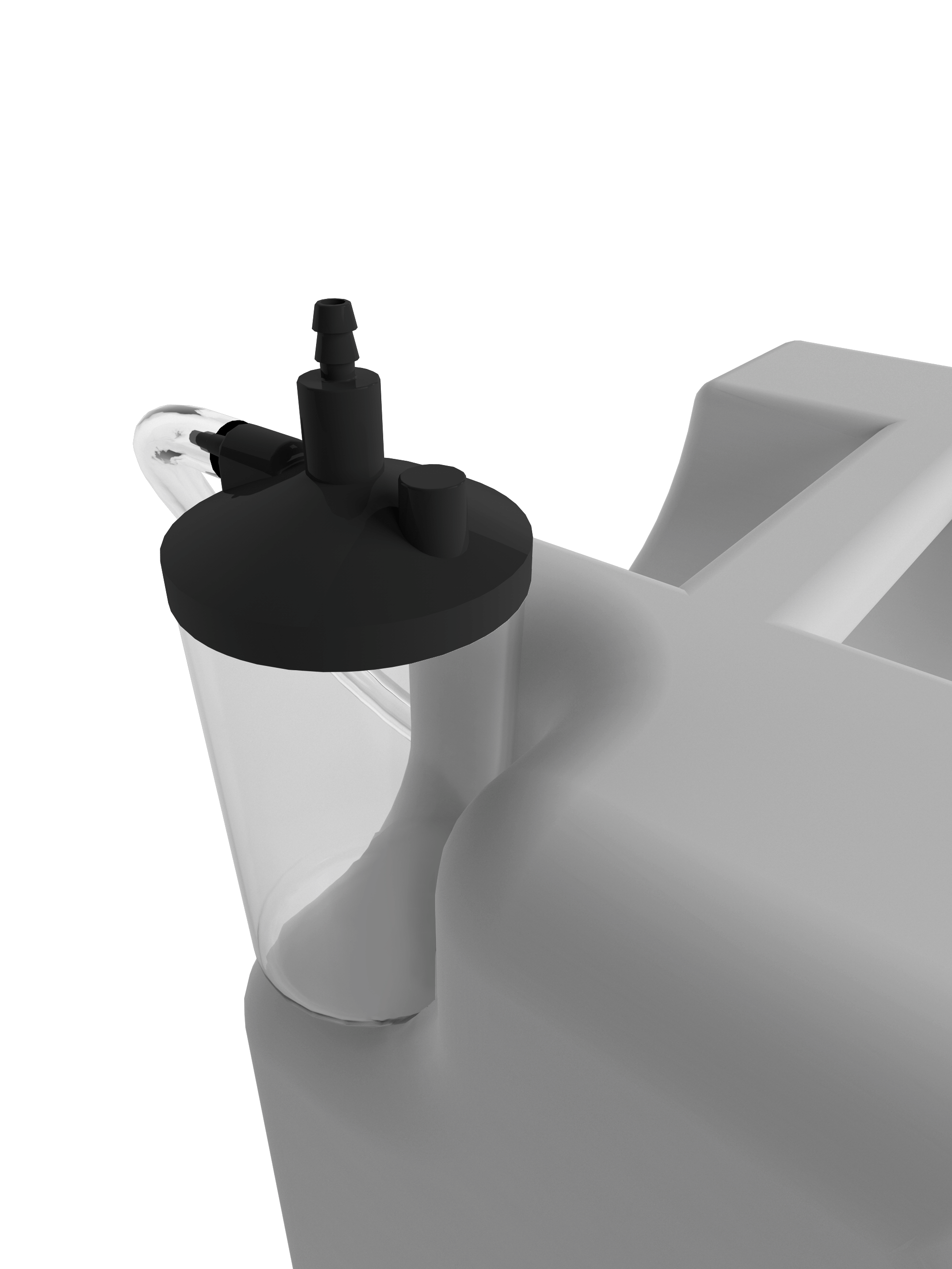

Humidifier, pre-filter, HEPA filter, 2 nasal cannulas, user manual
Lifespan
More than 18,000 hours

ULTRAOC models

ModelFlow rate L/minPurityOutput pressure kPaPower WNoise dB(A)Net weight kgDimensions mm
ULTRAOC 30 to 593% ± 3% (v/v)20 to 603204515344 × 306 × 565
ULTRAOC 80 to 1093% ± 3%40 to 806105020344 × 306 × 565

Oxygen therapy should be prescribed and monitored by a doctor.

Questions, answered.

Which models are there?

ULTRAOC 3, with 0 to 5 L/min, and ULTRAOC 8, with 0 to 10 L/min. Both give 93% ± 3% purity.

How is the oxygen delivered?

Through a nasal cannula or special mask. Flow is set by hand on a graduated flowmeter in L/min.

Does it need a prescription?

Oxygen therapy should be prescribed and monitored by a doctor.

What do the lights mean?

Green is good condition, oxygen concentration ≥ 82%. Yellow is 65% to 82%. Red is low concentration, < 65%.

Can it be used for nebulisation?

Yes, with a nebulisation cup of ≥ 0.15 ml/min.

Request a quote.

Tell us about your site. Our engineering team sizes the configuration and sends a quote.
