PSA Oxygen Booster Compressor, Oil-free

8models, LPT 1 to LPT 8

5 to 120m³/h flow capacity

10 to 12bar maximum outlet

Get the highlights.

ULTRALOBO is a low-pressure medical oxygen compression system for PSA oxygen generator plants. It delivers medical oxygen continuously, at a stable pressure high enough to supply the hospital, without changing the existing installation. It integrates oil-free ULTRACECO LPT boosters, and all parts in contact with oxygen are AISI 316 stainless steel.

No change to the installation

Integrates with PSA oxygen generator plants and keeps compatibility with upstream and downstream equipment, with no need to change the existing installation.

Oil-free

Completely oil-free system for the compression of medical oxygen. All parts in contact with oxygen are AISI 316 stainless steel, oil-free and cleaned for oxygen service.

Air or water cooled

Air-cooled or water-cooled closed circuit. The boosters are foundation-free for installation.

Automatic operation

Stand-alone boosters or controlled by a main control cabinet. Digital or on/off automatic operation, with alternating, sequential or cascade operation.

Technical specifications.

Compression: Completely oil-free, for medical oxygen
Boosters: ULTRACECO LPT series, in-line compression design. Variable speed drives can be used
Parts in contact with oxygen: AISI 316 stainless steel, oil-free and cleaned for compatibility with oxygen
Flow capacity: 5 to 120 m³/h, by model
Inlet pressure: 5 bar
Outlet pressure, max: 10 to 12 bar
Power: 2.2 to 15 kW, by model
Voltage and frequency: 400 V / 50 Hz, other under request
Cooling: Air-cooled or water-cooled closed circuit
Control: Stand-alone boosters or controlled by a main control cabinet
Operation: Digital or on/off automatic. Alternating, sequential or cascade
Installation: Foundation-free boosters
Construction: As per ISO 13485 (medical devices: quality management systems) and ISO 7396 (medical gas pipeline systems)

ULTRALOBO models

Model	Flow capacity m³/h	Inlet	Outlet max	Power kW	Dimensions cm
LPT 1	5	5 bar	10 to 12 bar	2.2	56 × 74 × 110
LPT 2	10	5 bar	10 to 12 bar	2.2	90 × 95 × 115
LPT 3	15	5 bar	10 to 12 bar	3.0	55 × 74 × 130
LPT 4	20	5 bar	10 to 12 bar	3.0	55 × 74 × 130
LPT 5	30	5 bar	10 to 12 bar	5.5	55 × 74 × 130
LPT 6	60	5 bar	10 to 12 bar	7.5	90 × 100 × 115
LPT 7	90	5 bar	10 to 12 bar	11	90 × 100 × 115
LPT 8	120	5 bar	10 to 12 bar	15	110 × 150 × 130

Every angle.

4 photos of the ULTRALOBO

Diagram of an ULTRALOBO LPT installation, two oxygen boosters piped between horizontal storage receivers

ULTRALOBO LPT low-pressure oxygen booster, front view of the white cabinet with pressure gauges

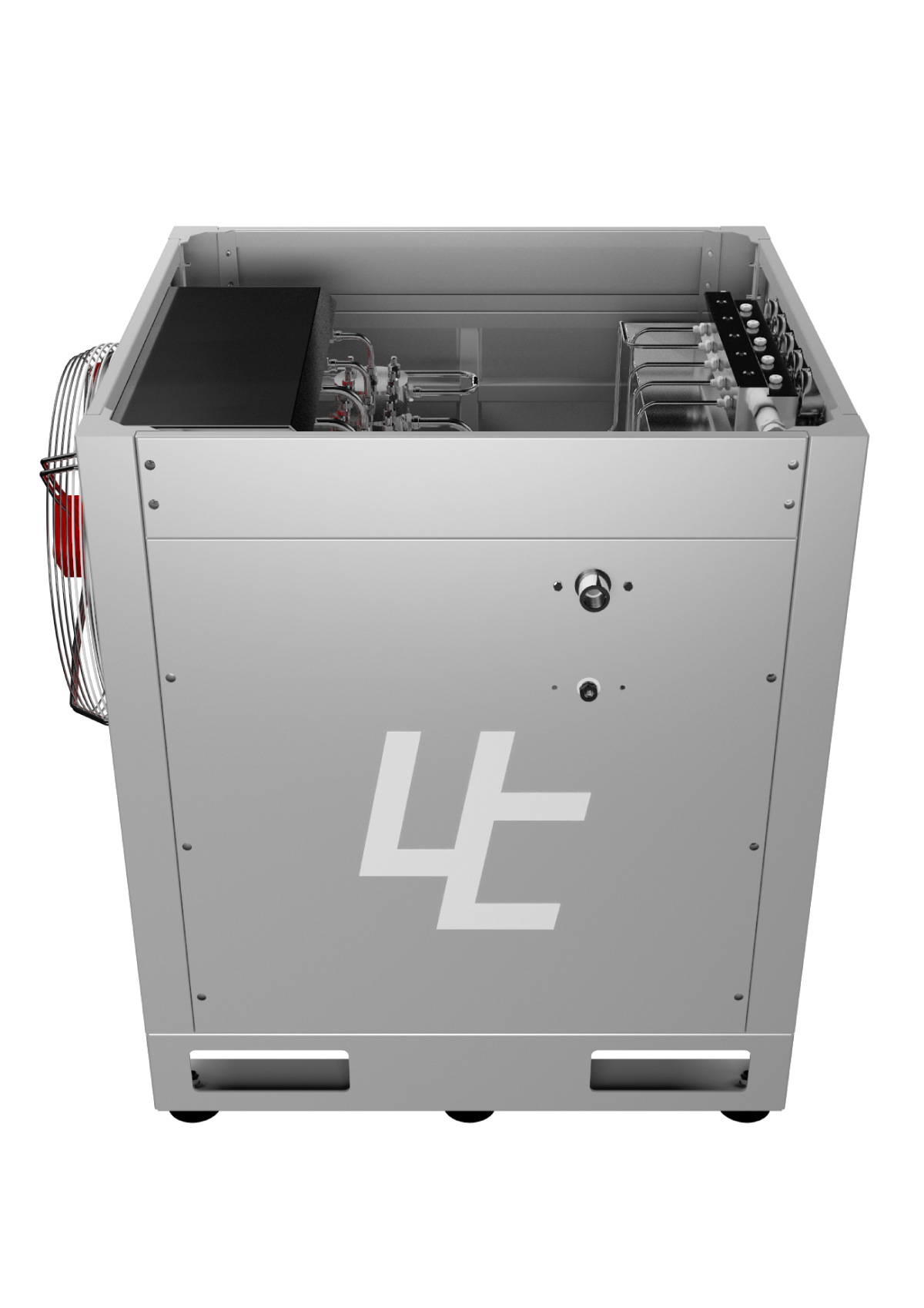

ULTRALOBO oxygen booster with the top enclosure removed, showing the internal pipework

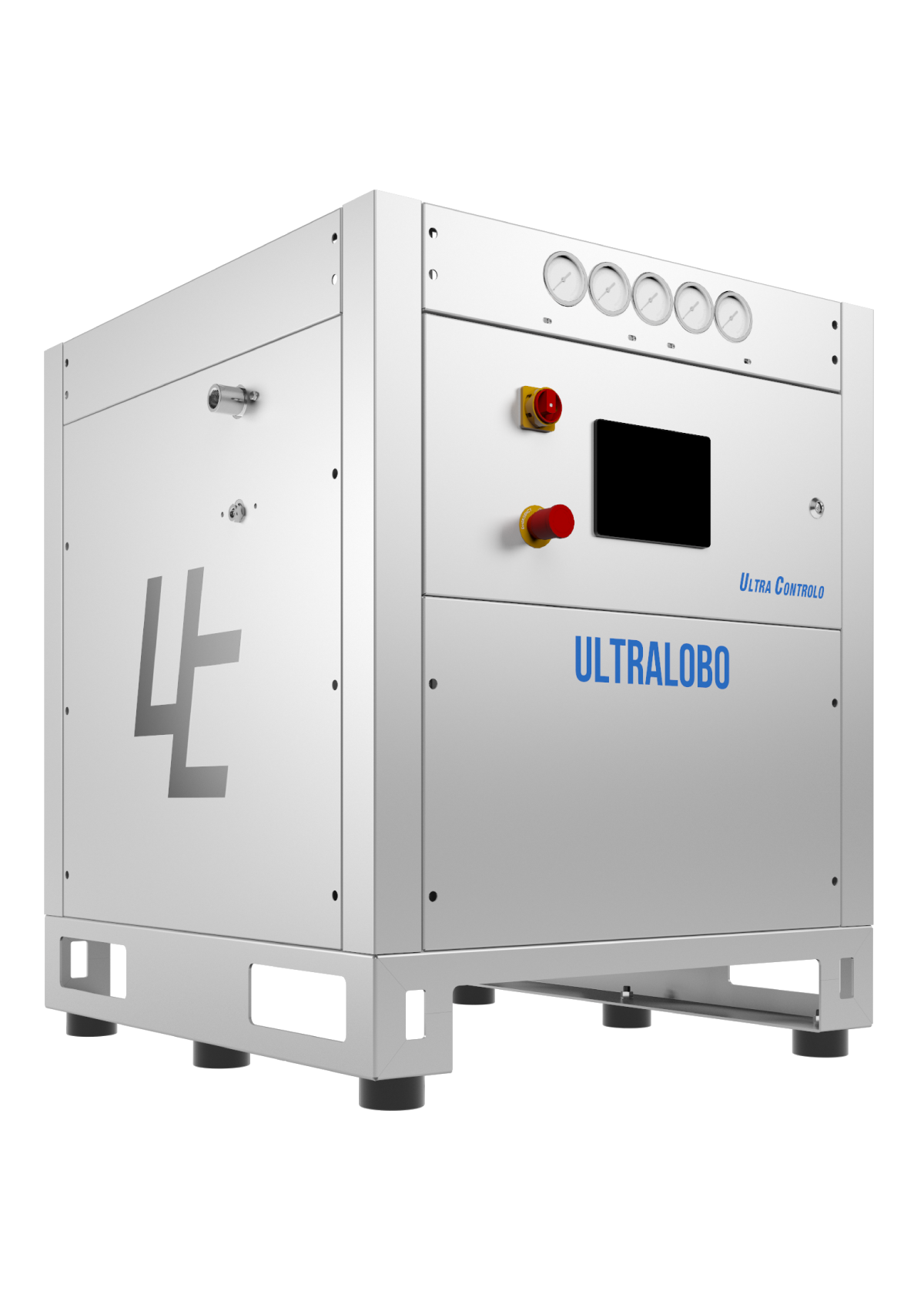

ULTRALOBO low-pressure oxygen booster cabinet with control panel, three-quarter view

Questions, answered.

What does an oxygen booster do in a PSA plant?

It raises oxygen from the PSA plant to a stable pressure for the hospital network, without changing the existing installation.

Is ULTRALOBO oil-free?

Yes. It uses oil-free ULTRACECO LPT boosters, and all parts in contact with oxygen are AISI 316 stainless steel.

What pressures does it work at?

5 bar at the inlet and 10 to 12 bar maximum at the outlet, on all eight models.

How is it cooled?

Air-cooled or water-cooled closed circuit.

Why buy from Ultra Controlo

Four decades of engineering, backed end-to-end.

Certified quality management

ISO 13485:2016 (medical devices: quality management systems) and ISO 9001:2015 (quality management systems).

UltraCare support

Preventive and corrective maintenance, original spare parts and technical assistance 24 hours a day, 7 days a week.

Sized by our engineers

Tell us how the system will be used, and our engineering team sizes it and sends a quote.

Shipped from Portugal

Ultra Controlo plants are assembled and tested in our factories in Portugal, ready to be installed on site.
